AsyncRAT Crusade: Detections and Defense

In January 2019 AsyncRAT was released as an open source remote administration tool project on GitHub. AsyncRAT is a popular malware commodity and tools used by attackers and APT groups. Threat actors and adversaries used several interesting script loaders and spear phishing attachments to deliver AsyncRAT to targeted hosts or networks in different campaigns.

One prevalent campaign in the wild with this remote access trojan is the use of a Microsoft OneNote spear phishing attachment to load a .HTA file that downloads and runs an obfuscated batch script to execute the actual AsyncRAT code.

Of the many features of AsyncRAT, it encrypts C2 communication protocol and contains several features via plugin including:

  • Chat Communication
  • File Search
  • Keylogger
  • Process Manager (Process list)
  • Extract Browser Credentials
  • View and Record Desktop Screen
  • Run Miner
  • Send Files
  • Remote Camera
  • File Manager
    • Get drivers list
    • Upload files
    • Delete folders and files
    • Copy files
    • Rename files and folders
    • 7z archiving files

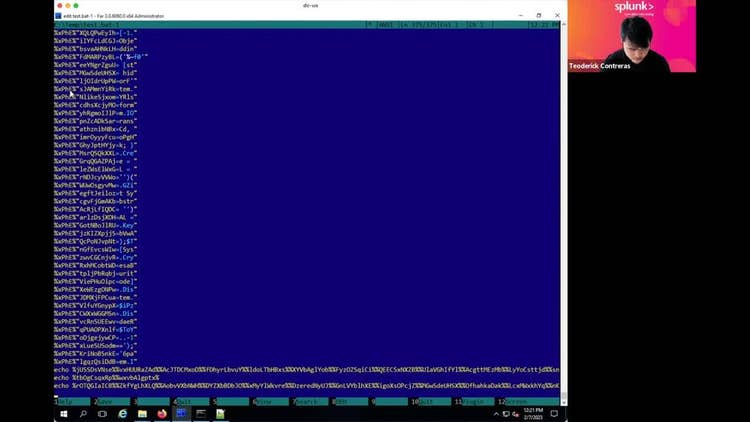

Watch the video below to learn more about AsyncRAT OneNote campaign.

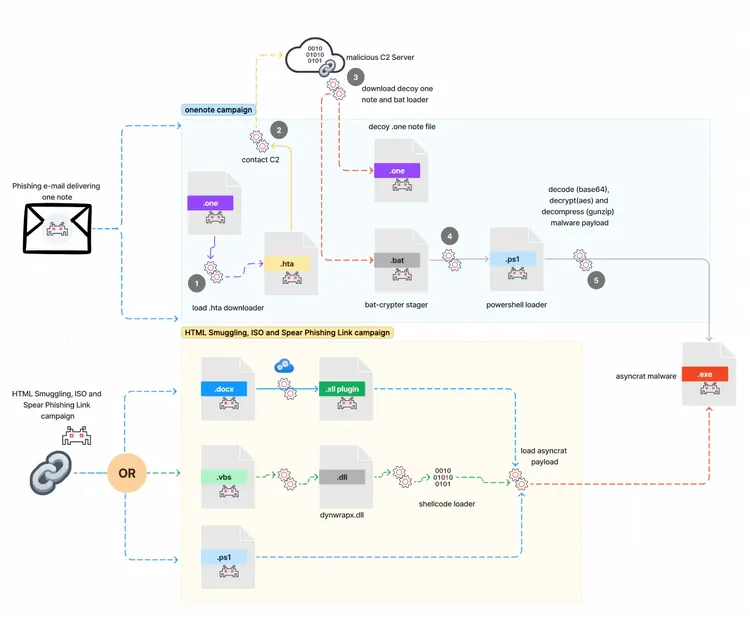

Figure 1 shows a short summary infection chain of OneNote campaigns that are discussed further in this article, including other interesting phishing campaigns that load different scripts to execute AsyncRAT.

Figure 1 (For a larger resolution of this diagram visit this link)

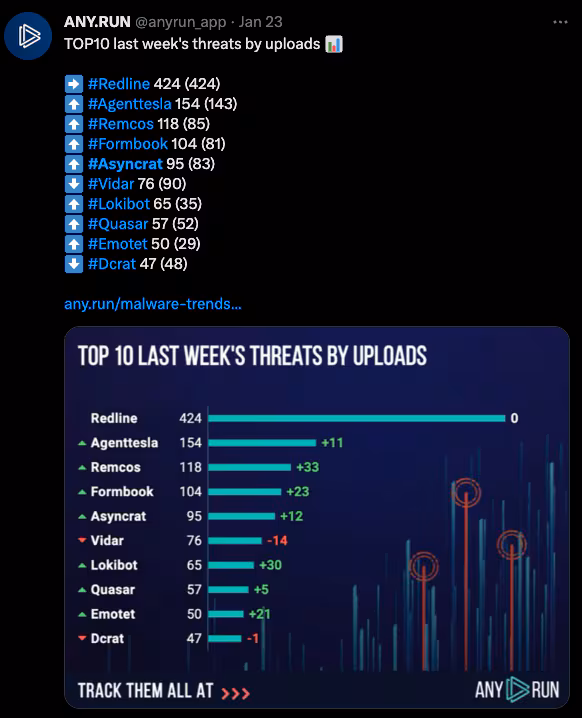

AsyncRAT has also been in the weekly TOP 10 malware trends tracker on app.any.run for the past few months.

Reference (tweet)

In the following sections, we explore a recent OneNote campaign, how to extract the AsyncRAT configuration, dive into common behaviors and review additional AsyncRAT script loaders.

Technical Analysis

OneNote Campaign

T1566.004 - Phishing: Spear Phishing Attachment

Malicious OneNote Attachment

The Splunk Threat Research Team (STRT) found several phishing email campaigns that contain malicious .one (OneNote) attachments. The malicious OneNote document will lure the targeted user to click through the warning to view the document as seen in Figure 2.

As soon as the user clicks, it will automatically load a malicious .HTA file to download the second stage of this infection chain.

Figure 2

T1218.005 - System Binary Proxy Execution: Mshta

.HTA Downloader

The .HTA file embedded to the .one file is responsible for downloading a .bat script that will decode the actual AsyncRAT malware. Simultaneously, another .one file will act as a decoy document to hide the execution of the malicious .bat script from the compromised user. Figure 3 is the code snippet of the .HTA file using a PowerShell cmdlet Invoke-Webrequest to download both the decoy .one file (%temp%\\invoice.one)  and the .bat script stager (%temp%\\system32.bat)

Figure 3

T1059.003 - Command and Scripting Interpreter: Windows Command Shell

.BAT Script Stager

The .bat script dropped in the%temp% folder is obfuscated to evade antivirus or other security products. The .bat script initializes a series of environment variables containing a string that will be concatenated at the end of its code to generate the PowerShell script that will decode, decrypt and load the actual payload. Figure 4 shows the last part of the .bat script code where it concatenates and executes the string initialized in several environment variables to generate the PowerShell script loader.

Figure 4

T1059.001 - Command and Scripting Interpreter: PowerShell

PowerShell Loader

Figure 5.2 shows a screenshot of the commented portion of the .bat script, which is the encoded and encrypted payload. The PowerShell script generated and executed by the .bat script mentioned earlier performs the following steps to extract and execute the actual malware payload.

  1. It decodes the BASE64 encoded comment string shown in Figure 5.2
  2. It uses AES cryptography namespace as well as the BASE64 encoded AES key and AES IV to decrypt the decoded chunk data.
  3. Finally after decryption, it decompresses it using the GZIP algorithm to extract the malware executable and load it using the .NET Reflection library.

Figure 5.1 is a simple flow diagram of how the PowerShell script executed by .bat script will decrypt AsyncRAT malware

Figure 5.1

Figure 5.2

Figure 5.3

BAT Crypter AsyncRAT Extractor Tool

The .batch script shown earlier is not only designed for AsyncRAT malware to load its code, but other malware groups such as QuasarRAT, DCRAT, Redline, Qakbot and more use this batch script, which can be found in Malware Bazaar. In order to decrypt multiple malicious batch scripts and extract the actual payload automatically, the Splunk Threat Research Team created a simple Python script  “asyncrat_bat_extractor.py” that will accept a file or folder containing several batch files that need to be extracted as a parameter. Figure 6 shows a simple execution example of this tool and how it decrypts several batch files in the “test” folder and places all the extracted payloads in the “extracted_payload” folder.

Figure 6

Now let's look at the AsyncRAT TTP’s to recognize its behavior and for analytics development.

AsyncRAT Common Checks

AsyncRAT is a .NET RAT that is being used by several threat actors to compromise organizations. During our research, the STRT found common behaviors that assist with detecting AsyncRAT on the endpoint.

Persistence

AsyncRAT client will check if its code runs with administrative privileges. If yes, it will add Windows Scheduled Tasks using SchTasks.exe with highest runlevel privileges to execute the copy of itself in %appdata%. Figure 7.1 shows one of the STRT analytics to detect AsyncRAT Scheduled Tasks.

| tstats `security_content_summariesonly` count min(_time) as firstTime max(_time) as lastTime  from datamodel=Endpoint.Processes
  where Processes.process_name = "schtasks.exe" Processes.process = "*/rl *" Processes.process = "* highest *"
  by Processes.process_name Processes.parent_process_name Processes.parent_process Processes.process Processes.process_guid Processes.dest Processes.user
  | `drop_dm_object_name(Processes)`
  | `security_content_ctime(firstTime)`
  | `security_content_ctime(lastTime)`

Figure 7.1

If AsyncRAT is not running with administrative privileges, it will use Registry Run Key

HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\Run

for its persistence. Figure 7.2 shows the code snippet of AsyncRAT function that creates its persistence on a compromised host.

Figure 7.2

Privilege Escalation

It will also adjust its process token privileges with the “SeDebugPrivilege” token to gain more privileges and control over other processes. Figure 8 shows the code adjusting its current process token to gain debug privilege escalation.

Figure 8

Defense Evasion

AsyncRAT has several defensive features to evade sandbox analysis or remote debugging of its code. The following features can be seen in Figure 9 with short descriptions below:

Functions Functionality
antiVM Check if its process is running in VirtualBox or VMware by running WMIC query “Select * from Win32_ComputerSystem”
antiSandoxSbieDLL Check if Sbiedll.dll is loaded, which is a module of sandboxie sandbox
 CheckRemoteDebuggerPresent  Check if remote debugger exist
checkDriveSize Check if the size of the disk drive of the compromised host is small to recognize if it's running in a malware lab or sandbox
checkIFOSIsXP Check if its process is running in XP Windows Operating System

Figure 9

Figure 10 is the code that drops a .bat script in the %temp% folder to delete itself as part of its defense evasion technique to clear its track after the execution and drop a copy of itself in the compromised host.

Figure 10

Command and Control

The last part is how communication is set up to the command and control server to download plugins or other payloads to the compromised host. AsyncRAT will decrypt its AES encrypted configuration data including the port (6606) and c2 ip-address (43.138[.]160.55) that will be used for C2 communication. Figure 11.1 is a screenshot of the decrypted config data of the AsyncRAT we analyzed, while Figure 11.2 is the code snippet for C2 server communication and C2 downloads.

Figure 11.1

Figure 11.2

Other AsyncRAT Script Loader

Aside from the ongoing OneNote campaign, the STRT has also noticed another way threat actors deliver AsyncRAT malware using a phishing link campaign, ISO or via another malware downloader.

Abusing .rels xml - Template Injection

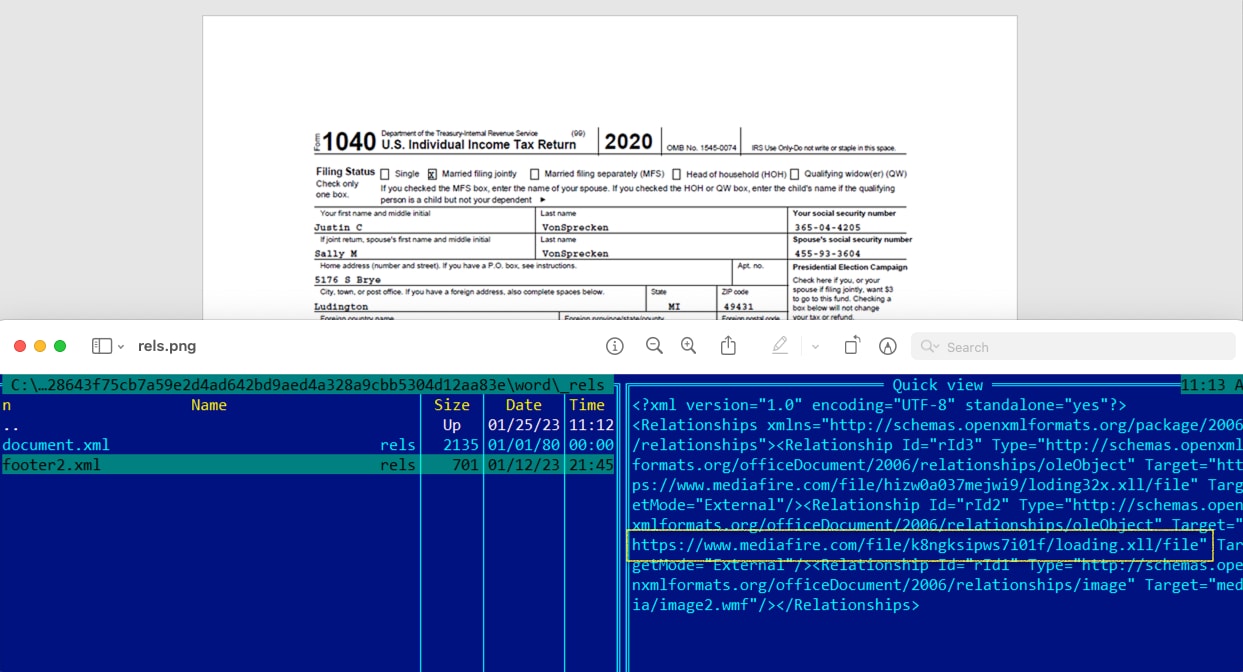

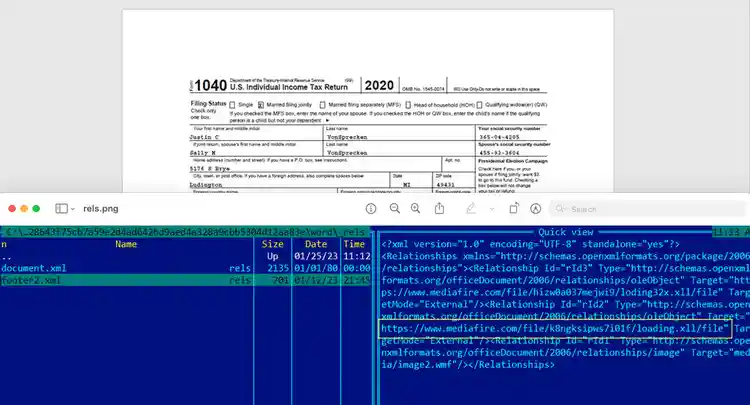

In February 2022, Microsoft pushed an update to disable macros by default in Office products. Because of this, many threat actors and adversaries worked to find another way to weaponize Microsoft Office documents. One of those techniques is abusing .rels file containing properties that define how the document is constructed. These properties can be used to reference remote resources via URLs. Figure 12.1 shows a screenshot of what this document looks like and how it abuses the footer2.xml rels properties of this Office document to connect to a malicious link to download another .xll, which then downloads AsyncRAT.

Figure 12.1

Figure 12.2 shows one of our AsyncRAT hunting analytics that detect this malicious Office document connecting to non-Microsoft Office domains.

`sysmon` EventCode=22 Image IN ("*\\winword.exe","*\\excel.exe","*\\powerpnt.exe","*\\mspub.exe","*\\visio.exe","*\\wordpad.exe","*\\wordview.exe","*\\OneNote.exe",
  "*\\OneNotem.exe","*\\OneNoteviewer.exe","*\\OneNoteim.exe")
  AND NOT(QueryName IN ("*.office.com", "*.office.net"))
  | stats count min(_time) as firstTime max(_time) as lastTime by Image QueryName QueryResults QueryStatus Computer
  | `security_content_ctime(firstTime)`
  | `security_content_ctime(lastTime)`

Figure 12.2

.VBS DynamicWrapperX Loader

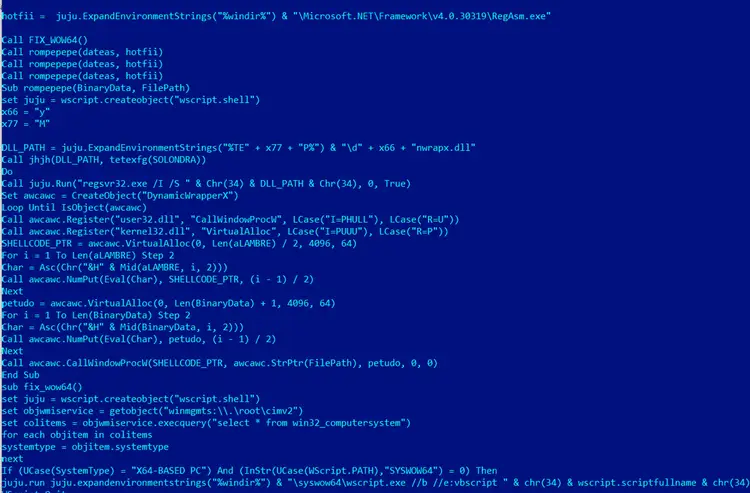

We also found a .vbs script loader that writes dynwrapx.dll to disk to be able to use DynamicWrapperX Object to inject or execute the actual payload. This .vbs script was also analyzed in detail by the STRT in our previous blog “Detecting Malware Script Loaders using Remcos”. Figure 13 shows a short code snippet of the .vbs script that uses dynwrapx.dll to load a shellcode that executes the actual AsyncRAT.

Figure 13

More PowerShell Script Loader

Another instance we found was an obfuscated PowerShell script being used by AsyncRAT to load its actual code. The PowerShell script will convert a large hex string to binary bytes which is the .NET compiled AsyncRAT that will be executed through .NET reflection Load Assembly Library.

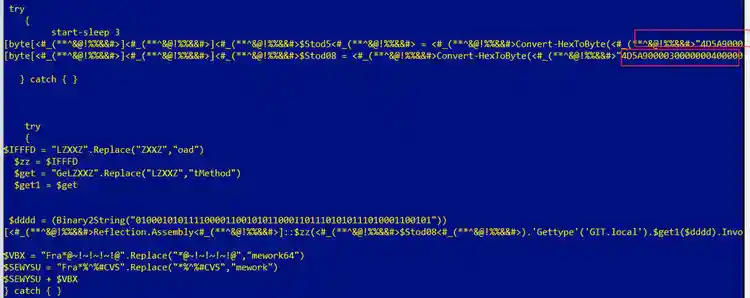

Figure 14 shows the code snippet of this PowerShell script highlighting the part of the hex string that will be converted to binary bytes of AsyncRAT.

Figure 14

This article shows the infection chain of a malicious OneNote Microsoft Office document. campaign that is rampant and widely used by different threat actors or APT’s to deliver a malicious payload or to gain initial access to the targeted host. This blog may help the SOC and security analysts to see how this OneNote Microsoft Office document. is being abused and how to add defensive measures against it.

IOCs

Hashes of samples we’ve analyzed in this article.

Description SHA256
.bat script 2421e2d7ed44911ce2d2f2d288a33c8650a2e5847d81b02911e3da31c292d03a
37563d85d00f66f27dfbdea1978227cccb739702aca826a9bdf671fd26d6b6a4
3d5e76babb87991d4abec7c048b34074ccc7c680f49639e0c55e5be0ee6df33d
8ee8a12754f344d0a1249f2de4d11044ebba8ba354df769d8d5019a639bb69c6
92dabfde91df07a3b2105e5972fbd2f5acf64b53465b60165a53e0795c1be8ba
bce00edede51b68cbf740e51b9f184bfd003d6ccb682cdcc661ecaa82dd67e42
c4952d905a0fb0466d45a58606635f0a2ac3b7c5cbb7e517118a9b695e3012e2
f1a126ea617a045454badfb230b3bc86ee5c1ad5698c1285472f71fc8497cbfc

AsyncRAT 3d8c723ceeaf346e9ea31d5449f4cbc37cf58993296a689d471c1e617a19d046
8d0c4f891f01840c2a9c6483554d661440bb6a81fe86f10d546c697fb9e958a5
774e4d4af9175367bc3c7e08f4765778c58f1c66b46df88484a6aa829726f570

OneNote 482a4763c8cf9c448fc851e6fe4554cc48abc563c49847ed040cdaee8a12003c
Docx abuses .rels 1e862e875511f28643f75cb7a59e2d4ad642bd9aed4a328a9cbb5304d12aa83e
.HTA

819448a878bbdc0658257296ab0f4951f1536ec7a1e20f1fd3b19ed716cada88
3652342b1e8b67e1700c3ed428dcc7b7f9f32984ea296f7dcf544b7b50493dc3

.vbs dynawrapx loader c62ef09ac5b47ea517047fd3719bb2e93b37b97f4c7477198c4b4d2383c227b6
PowerShell loader 4dc5cd716d199967111e2a35aa260f336ea63d9f56619ca468ac80145f2fbe15

Detections

The Splunk Threat Research Team has curated relevant detections and tagged them to the AsyncRAT Analytic Story to help security analysts detect adversaries leveraging the AsyncRAT malware. This analytic story introduces 23 detections across MITRE ATT&CK techniques.

For this release, we used and considered the relevant data endpoint telemetry sources such as:

  • Process Execution & Command Line Logging
  • Windows Security Event Id 4688, Sysmon, or any Common Information Model compliant EDR technology
  • Windows Security Event Log
  • Windows System Event Log
  • Windows PowerShell Script Block Logging

Automating with SOAR Playbooks

All of the detections associated with this analytic story create entries in the Splunk Enterprise Security risk index by default and can be used seamlessly with risk notables and the Risk Notable Playbook Pack. The following community Splunk SOAR playbooks can also be used in conjunction with some of the previously described analytics:

Playbook Description
Internal host WinRM Investigate

This playbook performs a general investigation on key aspects of a Windows device  using Windows Remote Management. Important files related to the endpoint are  generated, bundled into a zip, and copied to the container vault.

Active Directory Reset Password

This playbook resets the password of a potentially compromised user account. First, an analyst is prompted to evaluate the situation and choose whether to reset the  account. If they approve, a strong password is generated and the password is reset.

Why Should You Care?

With this article, the Splunk Threat Research Team (STRT) enables security analysts, blue teamers and Splunk customers to identify AsyncRAT malware. This article helps the community discover AsyncRAT tactics, techniques and procedures that are being used by several threat actors and adversaries (APT). By understanding its behaviors, we were able to generate telemetry and datasets to develop and test Splunk detections designed to defend and respond against this threat.

Learn More

You can find the latest content about security analytic stories on GitHub and in Splunkbase. Splunk Security Essentials also has all these detections available via push update.

For a full list of security content, check out the release notes on Splunk Docs.

Feedback

Any feedback or requests? Feel free to put in an issue on GitHub and we’ll follow up. Alternatively, join us on the Slack channel #security-research. Follow these instructions If you need an invitation to our Splunk user groups on Slack.

Contributors

We would like to thank Teoderick Contreras for authoring this post and the entire Splunk Threat Research Team for their contributions: Michael Haag, Mauricio Velazco, Lou Stella, Bhavin Patel, Rod Soto, Eric McGinnis, and Patrick Bareiss.



The Splunk Threat Research Team is an active part of a customer’s overall defense strategy by enhancing Splunk security offerings with verified research and security content such as use cases, detection searches, and playbooks. We help security teams around the globe strengthen operations by providing tactical guidance and insights to detect, investigate and respond against the latest threats. The Splunk Threat Research Team focuses on understanding how threats, actors, and vulnerabilities work, and the team replicates attacks which are stored as datasets in the Attack Data repository

Our goal is to provide security teams with research they can leverage in their day to day operations and to become the industry standard for SIEM detections. We are a team of industry-recognized experts who are encouraged to improve the security industry by sharing our work with the community via conference talks, open-sourcing projects, and writing white papers or blogs. You will also find us presenting our research at conferences such as Defcon, Blackhat, RSA, and many more.
