Microservices Load Balancing: Navigating the Waves of Modern Architecture

In today's rapidly evolving software development landscape, microservices architecture has become a popular approach to building scalable and maintainable applications. But as you decompose your monolithic application into smaller, independent services, you are met with the challenge of efficiently routing incoming requests to the appropriate instances of these services. Enter the realm of microservices load balancing.

What is Microservices Load Balancing?

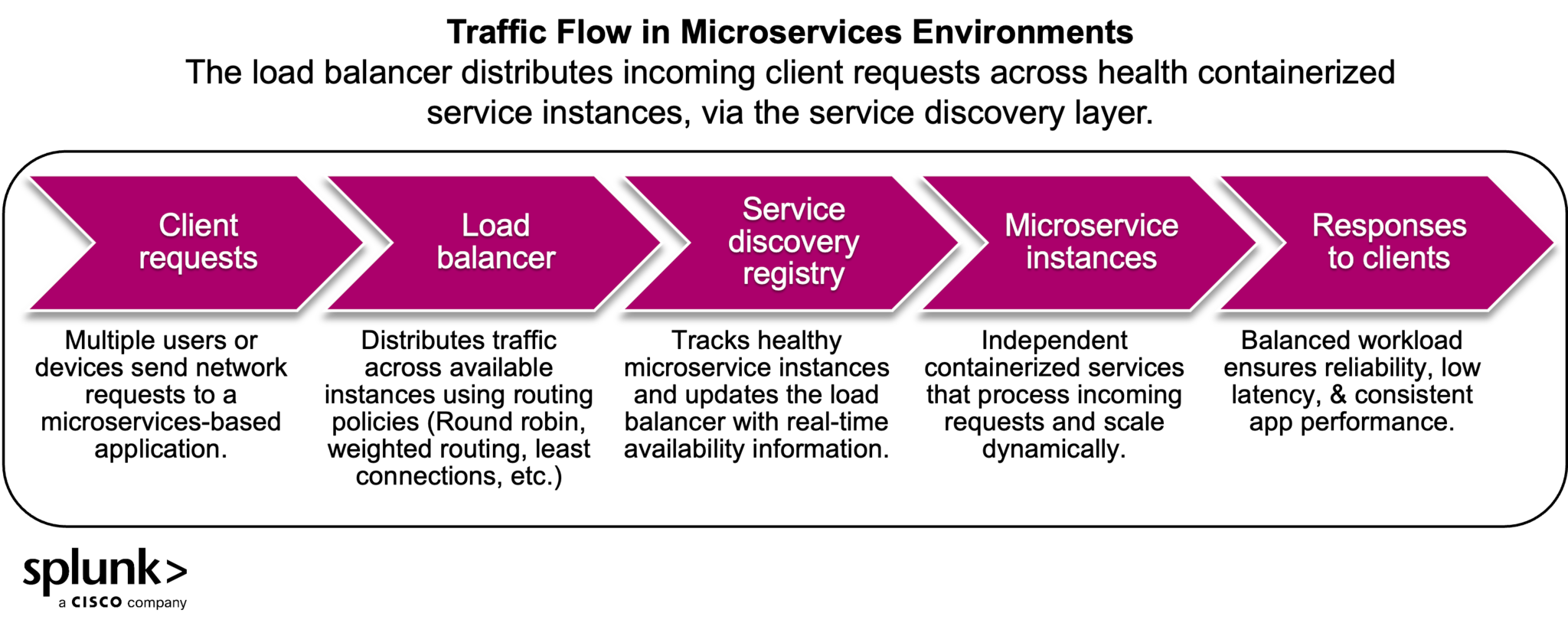

At its core, load balancing for microservices aims to distribute incoming network traffic across multiple instances of a service to ensure no single instance is overwhelmed with too much traffic. This results in:

  1. Optimal Resource Utilization: Traffic distribution ensures that all service instances are used effectively.
  2. Enhanced Application Availability: In the event that a service instance fails, traffic is rerouted to healthy instances.
  3. Reduced Latency: Requests are directed to the nearest or quickest service instance, minimizing response times.

Why is Load Balancing Critical in a Microservices Architecture?

Microservices often thrive in environments with dynamic instance scaling, where services can be scaled up or down based on the traffic demands. In such environments:

  1. Instances are Ephemeral: Service instances might be short-lived, often replaced, or new instances might be spun up to handle the load.
  2. Services are Distributed: Microservices might be scattered across various servers, data centers, or even geographical regions.
  3. Traffic is Unpredictable: Traffic patterns can change rapidly, requiring the infrastructure to adapt swiftly.

Given this nature of microservices, traditional load balancers that rely on manual configuration or static lists of servers can't keep up. Modern load balancers must be adaptive, recognizing the dynamic nature of the environment in which microservices operate.

Strategies for Microservices Load Balancing

Here are some common strategies employed:

  1. Round Robin: This is the simplest method where each request is forwarded to the next service instance in line.
  2. Least Connections: Directs traffic to the service instance with the fewest active connections.
  3. IP Hash: The source or destination IP address is used to determine which service instance will handle the request, ensuring a user always connects to the same service instance.
  4. Latency-Based: Directs traffic to the service instance with the lowest latency.
  5. Geographic: Based on the geographical location of the user, the request is directed to the nearest service instance.

Tools and Solutions for Load Balancing Microservices

Several tools cater to the needs of load balancing in microservices ecosystems:

  1. Hardware Load Balancers: Traditional hardware-based solutions like F5's BIG-IP are powerful but might lack the agility required for ephemeral microservices.
  2. Cloud Load Balancers: Cloud providers like AWS (with its Elastic Load Balancer) or Google Cloud (with its Global Load Balancer) offer managed load balancing solutions that integrate well with their respective ecosystems.
  3. Service Mesh Solutions: Tools like Istio and Linkerd, while offering load balancing, bring in additional capabilities like service discovery, traffic management, and security. They are designed with microservices in mind and can handle the dynamism of container orchestration platforms like Kubernetes.
  4. Open Source Load Balancers: Solutions like HAProxy, Nginx, or Traefik are flexible, powerful, and are often used in microservices deployments.

Best Practices to Consider

  1. Service Discovery Integration: Ensure your load balancer integrates with service discovery mechanisms. As services scale up or down, the load balancer should automatically adjust.
  2. Health Checks: Regularly verify the health of service instances. If an instance is unhealthy, it should be removed from the traffic distribution.
  3. Consider Data Persistence: If your services need to maintain session data, ensure your load balancing strategy supports session persistence.
  4. Monitoring and Logging: Continuously monitor performance metrics to adjust strategies, if needed. Logging helps in diagnosing issues and understanding traffic patterns.


Common Challenges with Microservice Load Balancing

  1. Understanding Your Load:
    • Issue: While traditional monitoring tools focus on per-node availability, they often neglect the state of the service or the distribution of the load across different nodes. This can result in unbalanced loads, which might degrade performance.
    • Solution: To better understand load distribution, the coefficient of variance (standard deviation to its mean ratio) can be calculated. A lower ratio indicates a balanced load, whereas a high ratio signals significant load disparities among nodes.
  2. Dealing with Dynamic Changes:
    • Issue: The infrastructure of cloud environments is inherently dynamic, adjusting in response to application demands or customer needs. Such changes can be cyclical (e.g., due to seasonal demand variations) or unexpected (like sudden traffic spikes).
    • Solution: The baseline of the load balancing effectiveness ratio, tracked over time, can offer insights into performance. By comparing the current ratio with its historical moving average, transient environmental variations can be distinguished from genuine anomalies.
  3. Knowing When There’s an Issue:
    • Issue: Timely issue detection and resolution are critical, as prolonged issues can breach SLAs, damage customer trust, and result in revenue loss.
    • Solution: Using alerts based on dynamic thresholds or outliers can notify teams when the load balancing effectiveness ratio indicates a potential issue. For instance, setting alerts relative to historical data (e.g., a year or a day ago) can offer insights into emerging patterns and required capacity adjustments.
  4. Preventing an Emerging Issue:
    • Issue: Preemptively identifying and addressing potential outages or performance issues is vital for maintaining trust and conserving resources.
    • Solution: Analytics-based alerting, drawing from comprehensive metrics across the entire production environment, can detect emerging trends. By recognizing these patterns early, teams can act proactively, preventing widespread issues.

To effectively address these challenges in a microservices architecture, there's a need for a paradigm shift towards real-time, streaming analytics that assess live performance data across all layers – from the application itself down to the underlying modern infrastructure. The true power of such analytics lies in its ability to provide holistic insights spanning application performance, service availability, infrastructure capacity, and end-user experience. Employing a proactive approach to application performance monitoring, which leverages intelligent analytics-based alerts, empowers teams with timely, relevant, and actionable insights.

Wrapping Up

Microservices load balancing isn't just about distributing traffic; it's about ensuring resilience, responsiveness, and scalability in a microservices environment. As the architecture evolves, the tools and strategies for load balancing also need to adapt. When chosen and implemented correctly, load balancers act as the unsung heroes, ensuring smooth sailing in the tumultuous waters of the microservices world.
