Detecting Ransomware Attacks with Splunk

Update 5/13/17: For more details and methods you can use to combat WannaCry and ransomware in general, please read, Steering Clear of the "Wannacry" or "Wanna Decryptor Ransomware Attack.

A few days ago, a customer asked me if Splunk could be used to detect Ransomware – y’know, the malware that encrypts all of the files on your hard drive and asks you to pay a ransom to get them back.  (If you’ve been trapped under something heavy for the last few years, see here  and here.)

Ransomware has been around for a few years now, and in fact Michael Gough, a local “Malware Archeologist” published a blog post about using Splunk to detect it way back in 2014. So yes, Splunk has been able to detect Ransomware for about as long as its been around.

Michael’s technique relies on enabling File Auditing within the Advanced Auditing features of later Windows operating systems for the directory of data that you want to monitor. I was about to do the same on my test systems, when I discovered that I could get a file creation timestamp using Windows Sysmon data.  Haven’t heard of Sysmon?  Still trapped under something heavy?  From the Sysmon home home page:

System Monitor (Sysmon) is a Windows system service and device driver that, once installed on a system, remains resident across system reboots to monitor and log system activity to the Windows event log. It provides detailed information about process creations, network connections, and changes to file creation time. By collecting the events it generates using Windows Event Collection or SIEM agents and subsequently analyzing them, you can identify malicious or anomalous activity and understand how intruders and malware operate on your network.

You want this.  This is good stuff.

So how exactly to detect ransomware with Sysmon data?  I installed Sysmon and a Splunk Universal Forwarder on a test system – then I infected it with some ransomware to find out. It turns out that ransomware is easy to find if you dial back your spam-filter/anti-virus/discretion and actually click on the links or unzip and run the attached scripts.

Sysmon’s output is XML, so it’s relatively easy to parse.  To make things even easier, use the Splunk Add-on for Microsoft Sysmon at:

Using this add-on, we can easily search for new file creation by including EventDescription=“File Create Time” in our search.  Since ransomware creates a whole ton of new files (your data: encrypted!) we want to look for a file name that’s creating a large number of new files in a short amount of time.  We can accomplish this with a Splunk search using the streamstats command.  This command calculates statistics for each event at the time the event is seen.  In this case, we want to keep a running total of new files created over a relatively small time window – let’s say one minute.  Then we want to look for instances where the number of new files crosses some arbitrary threshold.

sourcetype="xmlwineventlog:microsoft-windows-sysmon/operational" EventDescription="File Create Time"
| streamstats time_window=1m count(EventDescription) AS "new_files"
| search new_files>10

For my testing environment, I chose 10 new files per minute as my threshold.  You will DEFINITELY want to adjust this in your own environment.

So, the search above returns events, and these events contain the full path to the process image (e.g. C:\Windows\Explorer.EXE)  If we take the values for Image and feed them back into a Splunk search, we can find the SHA1 hash of the file that’s generating so many new files.  We can also list the ParentCommandLine value and get a timestamp for this activity:

[ search sourcetype="xmlwineventlog:microsoft-windows-sysmon/operational" EventDescription="File Create Time"
| streamstats time_window=1m count(EventDescription) AS "new_files"
| search new_files>10 | fields + Image ]
| stats  last(Image) as File by sha1, _time, ParentCommandLine

See anything suspicious?  This is what ransomware looks like:

Splunk Search ransomware

When I mentioned this use case to a colleague, he thought this was cool, but wanted to know if this would also detect a large number of files being created by unzipping a file or simply copying lots of files from one drive to another.  Yes it does!

This is what copying a bunch of files around looks like:

no_ransomware_search_screenshotSo how to tell the difference between the normal activity and the ransomware?

Since I’ve got the SHA1 hash of each running file, I can use that to first: query and verify that the hash that of a known good file.  Then, I can use that SHA1 hash to build a lookup table to use as a whitelist.  Anything that I haven’t already whitelisted as a know good file should raise a flag.

Here’s an example lookup file named sha1_whitelist.csv


And here’s the transforms.conf entry to use it:

filename = sha1_whitelist.csv
min_matches = 1
default_match = NOT_FOUND

The last two lines of the transforms.conf file means that if the hash of a running process isn’t in your lookup file, Splunk returns “NOT_FOUND”.


From here, I can click on the value of a sha1 hash to the raw data for the event that has that hash.  From there, I can use a custom workflow to search for the hash at

Configuring the workflow via GUI:


The resulting workflow_actions.conf file (if you’re not into using a GUI):

display_location = both
eventtypes = ms-sysmon-process
fields = sha1
label = Virus Total Lookup
link.method = get = blank
link.uri =$sha1$
type = link

And here’s the workflow in action:

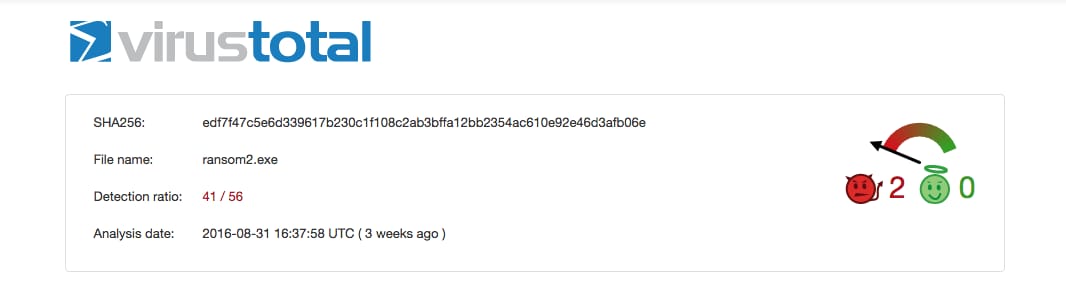

Clicking on “Virus Total Lookup” opens a new tab in my browser and takes me to the search results on  Yep, it’s ransomware.


This is just one example of the great stuff you can do simply by applying analytics to Microsoft Sysmon data.

It’s a very rich data source that can be applied to a number of different use cases.  And when it’s combined with Splunk’s rich search processing language, you’ve got a powerful digital forensics and incident response tool. This is just one example of how Splunk can be used to combat ransomware. Point your Google to for more!

Bert Hayes
