Configure Jupyter Notebook to Interact with Splunk Enterprise & the Splunk Machine Learning Toolkit

Ever wanted to manage and integrate your Splunk Enterprise deployment using your favorite data science tool? Then this blog's for you. But there are a couple things to keep in mind—this is for development and single instance deployments only, and it also requires sudo/root access to the server in order to properly map user PIDs and ownership of directories inside the Docker container to the host operating system.

Requirements:

• Sudo/Root Access
• Docker & Knowledge of Docker CLI
• Splunk Enterprise
• Understanding of Jupyter Notebook

Preparing the Environment

To prepare the environment you should verify Docker is installed on the host system.

To check if Docker is installed on your server or workstation simply type:

$ docker --version

Docker version 18.09.2, build 6247962

If you see a similar output from the command above, you can move onto the next step. Otherwise, check out the documentation at Docker.com to install for your platform of choice.

Determine Splunk’s UID

Following Splunk’s best practices and a depth in defense strategy, it's suggested to run Splunk Enterprise as a local user. When a user is created in Linux, a user ID (UID) is assigned. This is needed to map directory ownership and processes to the container.

For this example, Splunk Enterprise is currently owned by the user splunk. To determine the UID you can simply use:

$ id -u splunk

1001

You will need this UID to pass to the container running Jupyter Notebook. Full documentation on the different run hooks that can be used as part of building the container image can be found at the following resource here.

If Splunk Enterprise is currently running on your host machine, shut down Splunk as the splunk user:

$ /opt/splunk/bin/splunk stop

Install Jupyter Notebook via Docker

Once Splunk Enterprise has stopped, you can use Docker to install Jupyter Notebook and reassign the splunk web & splunkd ports to the container.

 $  docker run -t -i --user root -p 8888:8888 -p 8000:8000 -p 8089:8089 -e NB_UID=1001 -e NB_GID=1001 -e JUPYTER_ENABLE_LAB=yes -e NB_USER=splunk -e CHOWN_EXTRA="/home/splunk" -v /opt/splunk/:/home/splunk/ jupyter/base-notebook

The command above assumes the following:

1. Splunk Enterprise is installed in /opt/splunk/
2. All the files and directories in /opt/splunk are owned by the user Splunk with a UID of 1001
3. Ports 8888, 8000, 8089 are free on the host operating system

Once the container has started back up, you should be able to use the supplied credentials to login to the Jupyter notebook server. You can disconnect from the docker terminal using the following escape sequence: control + p, control + q.

If permissions and mounting options have been assigned correctly, Jupyer should be treating /opt/splunk as /home/splunk (you can verify this using Jupyter Notebook).

Clicking the terminal option, you can test the permissions of the Splunk user to manipulate Splunk configuration files as well as start Splunk Enterprise.

splunk@6ae2fb6269c4:~$ whoami

splunk

splunk@6ae2fb6269c4:~$ pwd

/home/splunk

splunk@6ae2fb6269c4:~$ ls

bin            etc      lib               openssl            share                                                var

copyright.txt  include  license-eula.txt  README-splunk.txt  splunk-7.2.1-be11b2c46e23-linux-2.6-x86_64-manifest

splunk@6ae2fb6269c4:~$ bin/splunk start

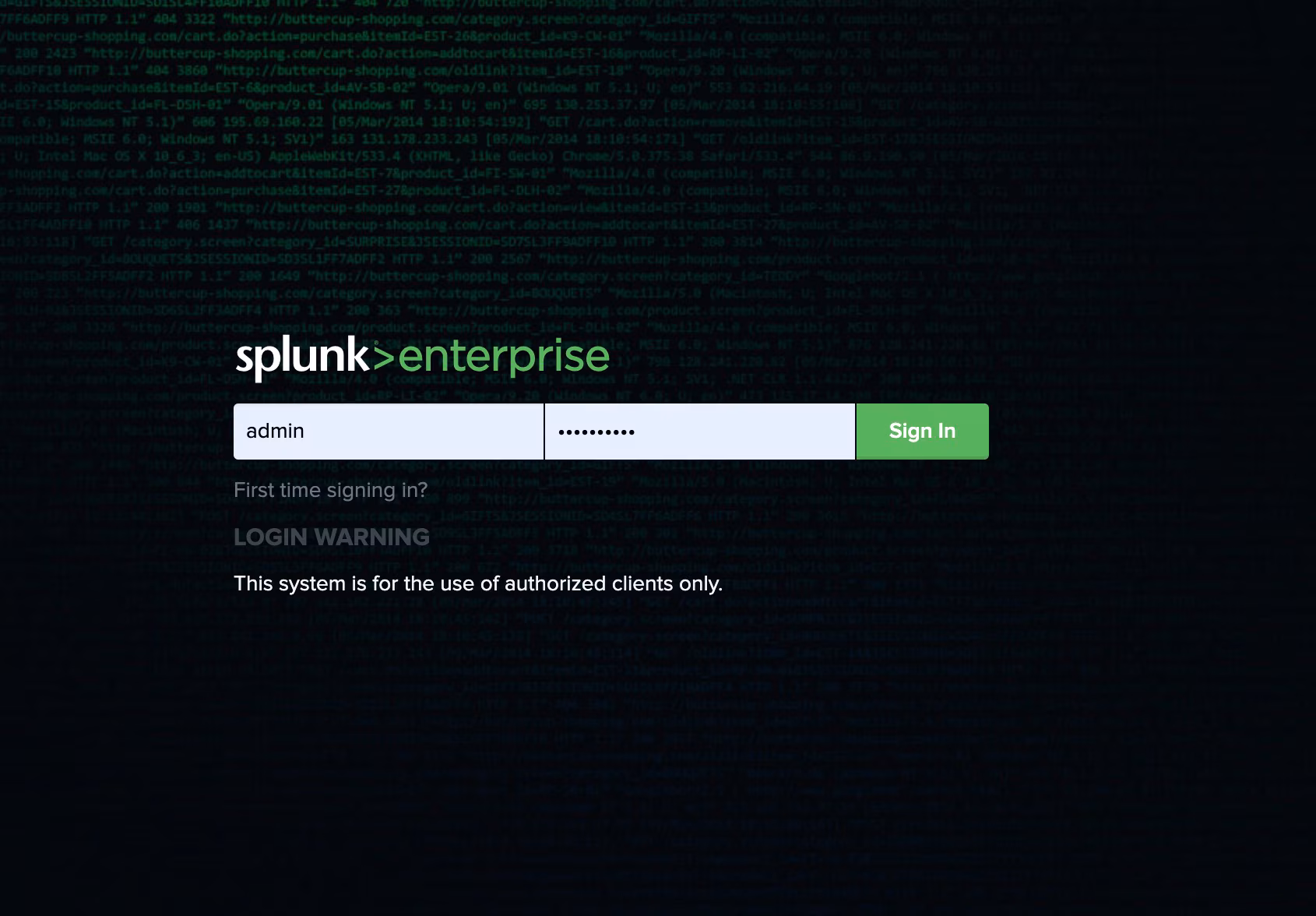

Once Splunk Enterprise has started, you should be able to access the web interface using the same credentials you would normally use.

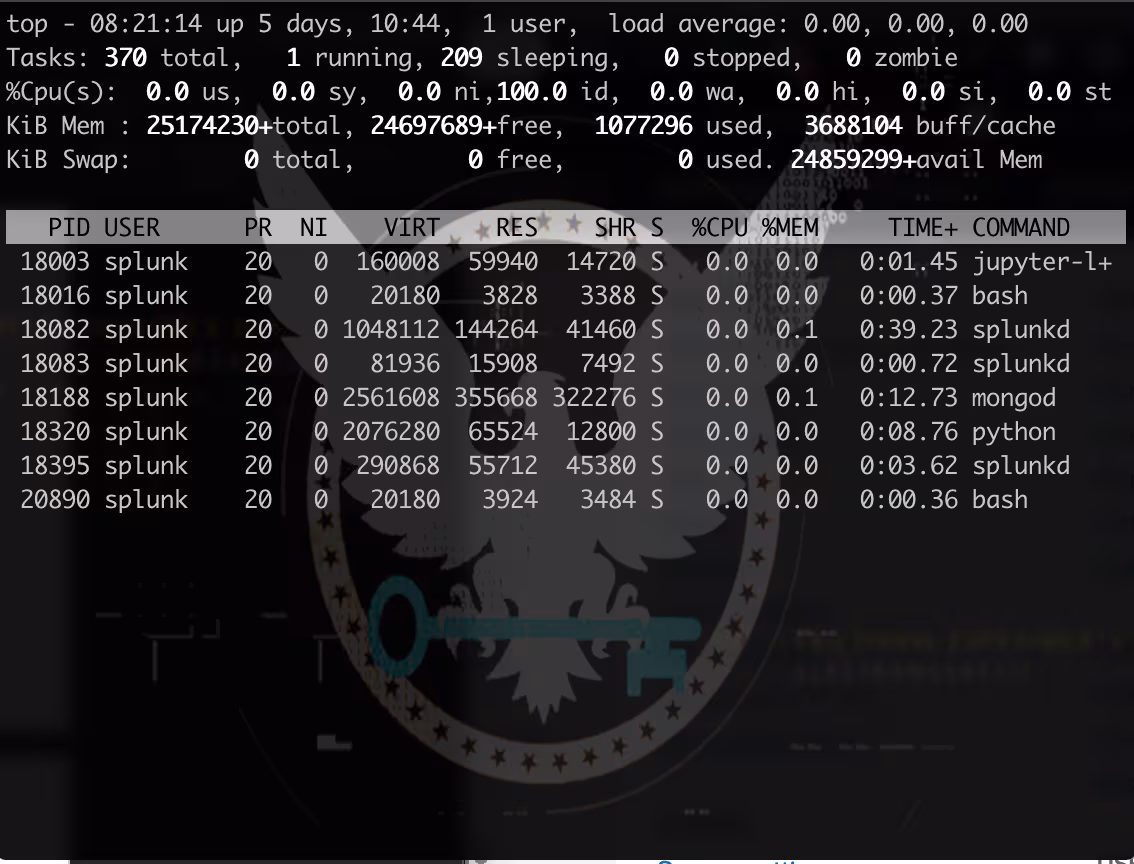

You can also verify Splunk Enterprise is running by using the top command.

Leverage Splunk's CLI for Data Science & Machine Learning

With Jupyter wired up, you can now interact with Splunk Enterprise via CLI to run searches. This can be leveraged to interact with Splunk via Python (REST API) or directly using the CLI interface to search, and transform data.

splunk@6ae2fb6269c4:~$ bin/splunk search 'index=_internal | fields _time | head 1'

Splunk username: admin

Password:

04-01-2019 08:28:15.935 +0000 INFO  Metrics - group=thruput, name=thruput, instantaneous_kbps=1.2758811410502788, instantaneous_eps=5.032329004121768, average_kbps=2.109314993992371, total_k_processed=9285, kb=39.5517578125, ev=156, load_average=0

Check out the documentation for the command using:

$ bin/splunk help search

You can change the format to csv or other formats that easier integrate into your python notebook using the output option.

        output       value   indicates how to display the job. Choices are:

                             rawdata, table, csv, raw, and auto. If not specified,

                             defaults to rawdata for non-transforming searches

                             and table for transforming searches.

$ bin/splunk search 'index=_internal | fields _time | head 1' -output csv

Using Splunk & the Splunk MLTK via CLI

Splunk Enterprise’s CLI supports app contexts and most search commands that have been installed by apps. An example of this is the fit command which can be used to build a model based the results of a Splunk search.

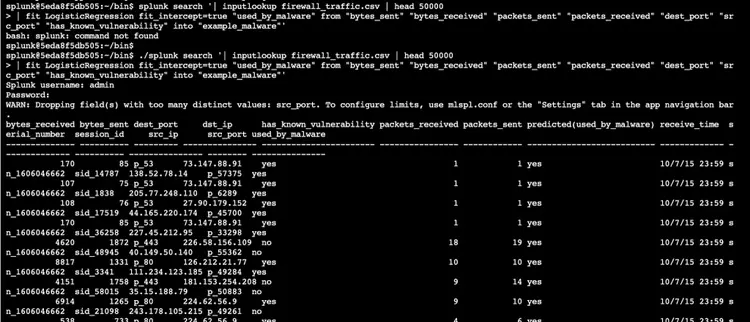

$ bin/splunk search '| inputlookup firewall_traffic.csv | head 50000

| fit LogisticRegression fit_intercept=true "used_by_malware" from "bytes_sent" "bytes_received" "packets_sent" "packets_received" "dest_port" "src_port" "has_known_vulnerability" into "example_malware"'

We hope you enjoyed this blog on how to integrate Jupyter Notebook with Splunk Enterprise. In part two, we'll cover some hands-on examples of how to leverage this configuration for machine learning and analytics.

----------------------------------------------------
Thanks!
Anthony Tellez
