Calendar Custom Visualization with Simple XML

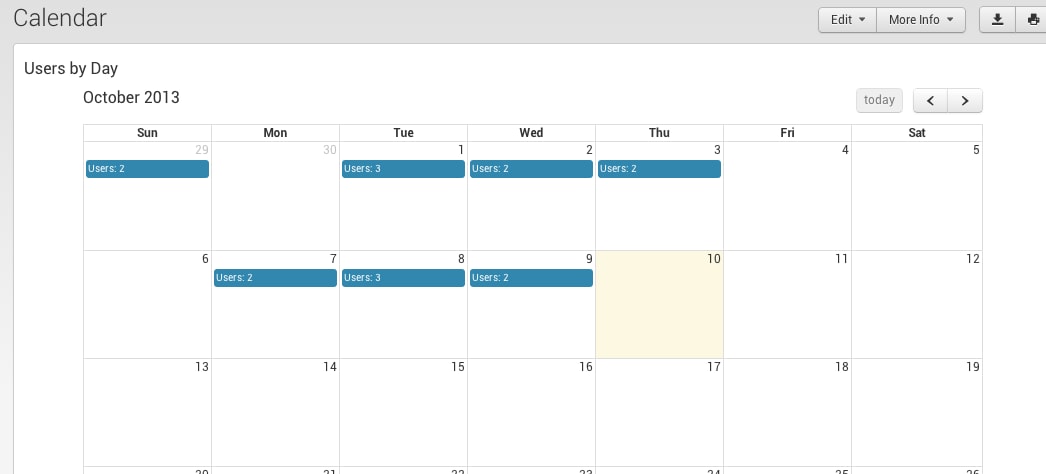

While designing a recent application, I wanted to display how many unique users logged in per day on a monthly basis.  This is relatively trivial to do in the Splunk search language, but the visualization of that data usually ends up being a table.  I thought it would be more natural to display this information on a calendar, so I set out to get this working with the new Splunk 6 hotness.  Here is the result:


The Search

Like I said earlier, the search part of this pretty easy.  I am looking in the Windows Security Event Log, but you don’t have to.  Really, all we are trying to get to is a list of events that have a date and a count of something.

Anyway, here is the search to find Remote Interactive (Logon_Type=10) successful logon events (EventCode=4624).

index=<some index with Windows events> sourcetype="WinEventLog:Security" EventCode=4624 Logon_Type=10 | bucket _time span=1d | stats dc(Account_Name) AS Users by _time | convert timeformat="%m/%d/%Y" ctime(_time) AS date | stats count by date,Users

For more information on Logon Types, check out this ->


The Simple XML Dashboard

Here is an excerpt from the Simple XML

<div id="eventCalendar"
          "managerid": "calSearch",
          "valueField": "Users",
          "dateField": "date",
          "linkUrl": "/app//day",
          "destFormField": "date"

Note the data-options part. This lets us pass values to the JavaScript running the show behind the scenes. We are passing a URL field so that we can make the data in the calendar days clickable for a drilldown to another Splunk dashboard.


The Visualization Code

The workhorse of all this is a JavaScript file called eventcalendar.js. eventcalendar.js inherits simplesplunkview.js which is located in $SPLUNK_HOME/share/splunk/search_mrsparkle/exposed/js/splunkjs/mvc/.

The real calendar visualization comes form an open-source JavaScript library called FullCalendar found here ->

In eventcalendar.js, we basically just override 3 methods in order to get the data in a format the FullCalendar expects and update the Splunk View.

  1. formatData: Formats results data from Splunk and returns a handle to the data.
  2. createView: Configures the view and returns a handle to it.
  3. updateView: Puts Splunk data (returned by the formatData method) into the view (returned by the createView method) and renders it.

For more information on this technique see this ->

You can download all the code for this project here ->
