Realtime alerts of mobile app crashlog

In the previous articles, we discussed about how to include the library to forward crashlog from iOS and Android mobile apps into Splunk Enterprise, install a Splunk app to aggregate the forwarded logs from mobile devices and then perform some simple analytics with the indexed data. If you have been following closely the write-ups and Splunk-ing the valuable data from iOS and Android mobile apps, you might be interested to know how to setup an alerting mechanism in the event of a crash.

We are going to discuss in particular how to configure realtime alerts via email with PDF attachment using Splunk Enterprise. It takes very little time (timed myself – 2 minutes at least; pro Splunkers out there, you might take even less time 8) ) to enable realtime alert and the steps are follow:

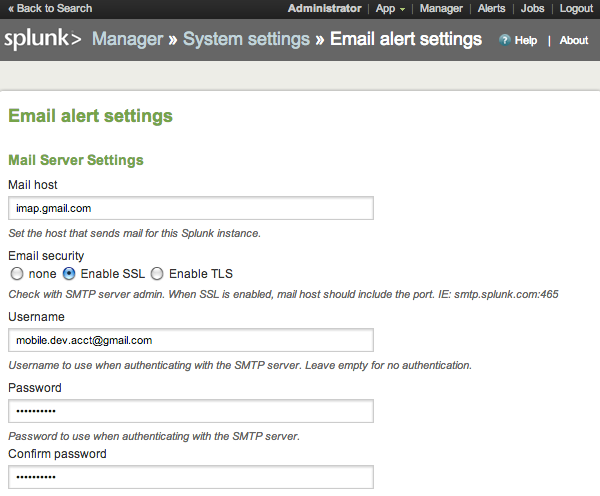

  1. CONFIGURE EMAIL SETTINGS
    • Go to Manager » System Settings » Email System Settings
    • Provide the values for Mail Host, Username and Password
    • Don’t forget to Enable SSL

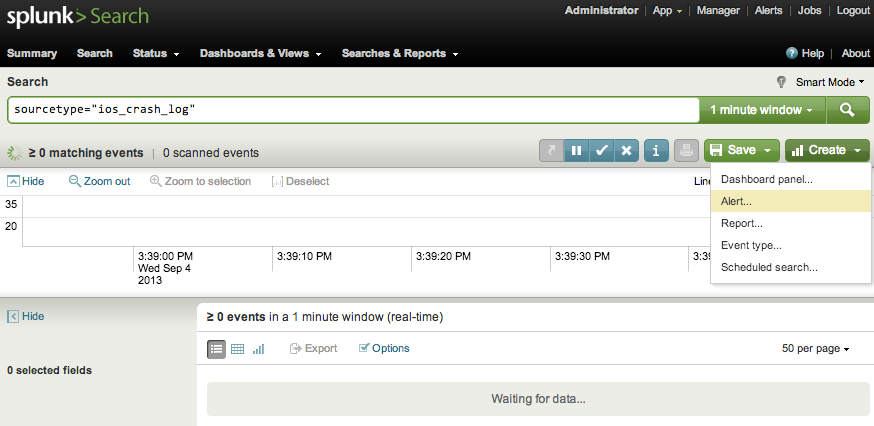

  2. CREATE REALTIME ALERT
    • A very simple search command is used in this example sourcetype=”ios_crash_log” with Real-time of 1 minute window
    • Click Create and select Alert

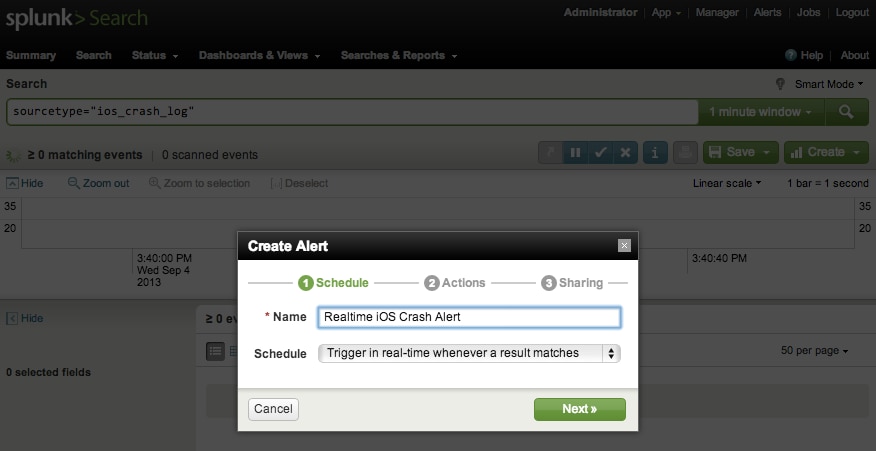

  3. SCHEDULE ALERT
    • Provide a name for the alert. In this example it is Realtime iOS Crash Alert
    • Schedule the alert as Trigger in real-time whenever a result matches
    • Click Next » button

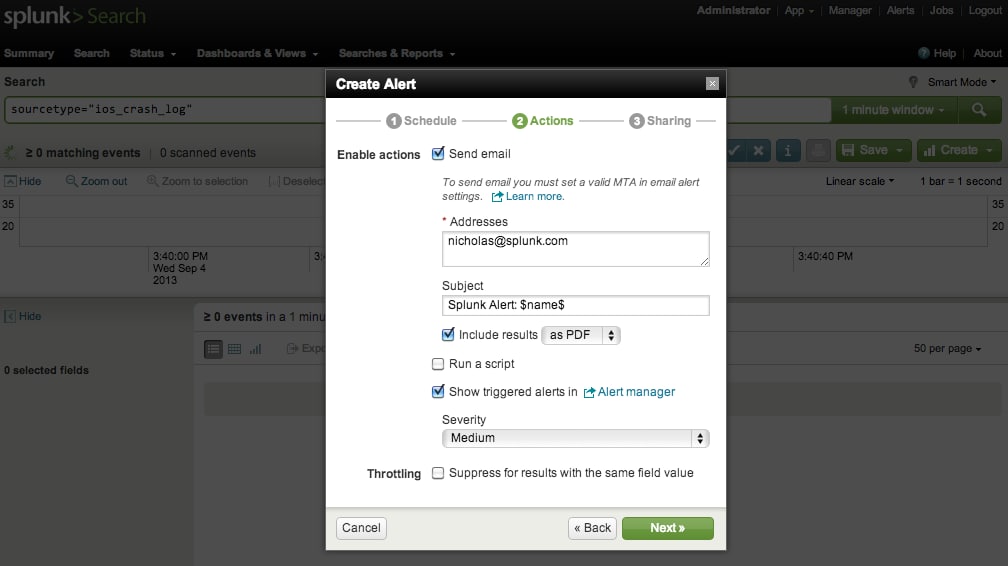

  4. CONFIGURE ALERT TO SEND EMAIL
    • Check to Send email
    • Provide the email address(es) of the recipient(s)
    • Check to attach results as PDF
    • Check to show triggered alerts in Alerts manager
    • Click Next » button

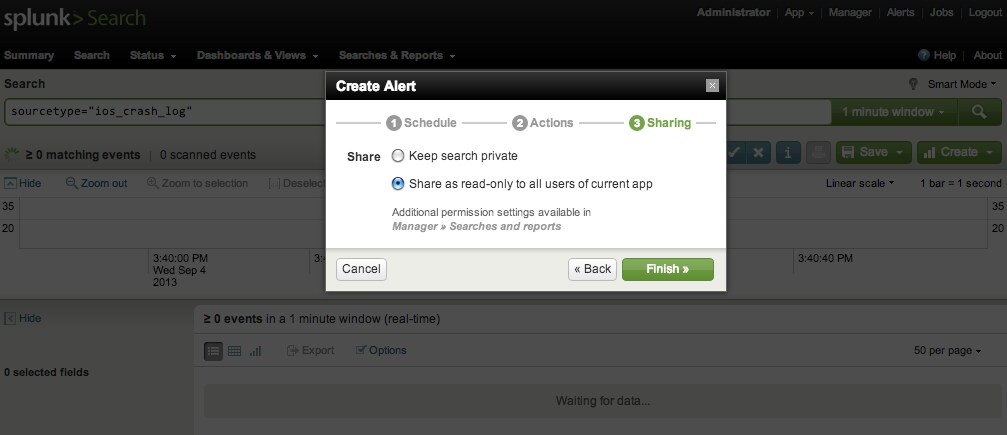

  5. SHARE ALERT
    • Select Share as read-only to all users of current app (if you want to share the search result to all users)
    • Click Finish » button

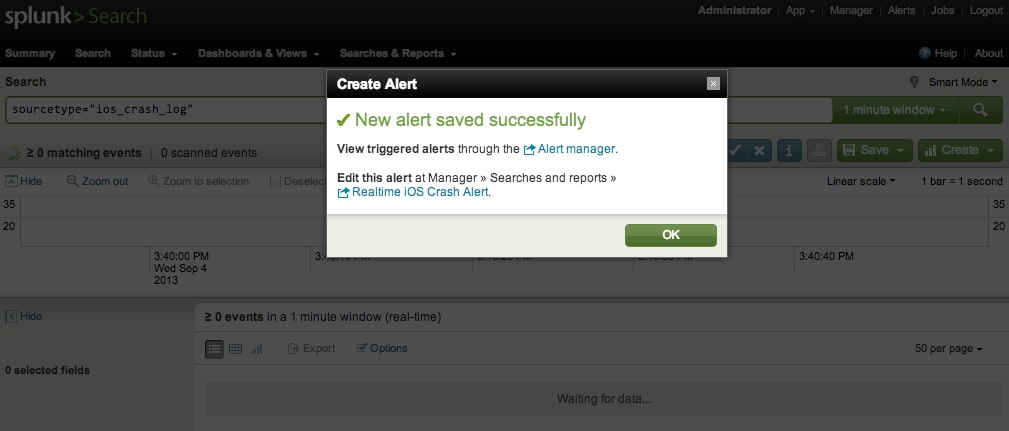

  6. ALERT CONFIGURED SUCCESSFULLY
    • Congratulations! You have successfully created a real-time email alert with PDF attachment
    • Click OK button to conclude the configuration

  7. RECEIVE EMAIL NOTIFICATION
    • Now that you have successfully configured realtime alert with Splunk, you may now check your email client for the alert
    • In this example, the email is sent from mobile.dev.acct@gmail.com (which was configured in Step 1)
    • You will notice that the subject of the email is Splunk Alert: Realtime iOS Crash Alert (this was configured in Step 4 where $name$ is replaced with the name of the alert)

  8. PDF ATTACHMENT
    • Voila! A PDF attachment of the realtime search result


Hurray … you can now setup realtime alert with Splunk! This is A.W.E.S.O.M.E 8)
